QO100 Down Converter 144MHz Output
This QO100 downconverter is a combined downconverter and a 25 MHz PLL reference for an 10GHz LNB.

Standaard levertijd

3-4 werkdagen

€ 220,00
Prijs per stuk
Aantal:
Bestellen

This downconverter is a combined downconverter and a 25 MHz PLL reference for the LNB. The converter works as a 2nd down converter from 739 to 144 MHz. (The first converting is the pll controlled LNB from 10489.5 to 739.5 MHz).

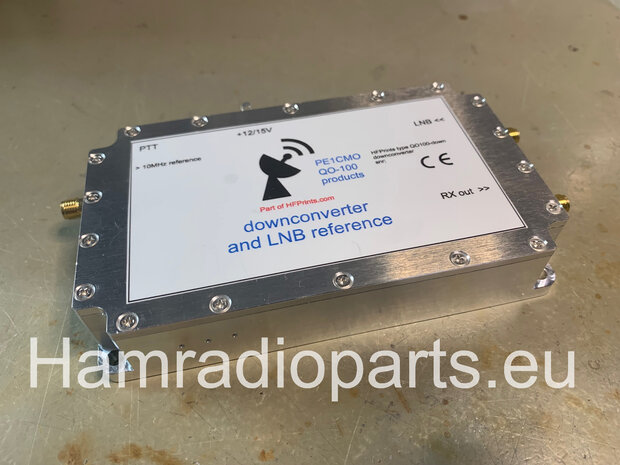

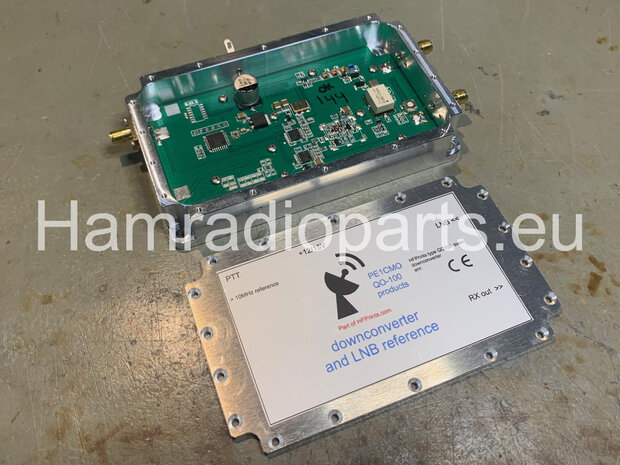

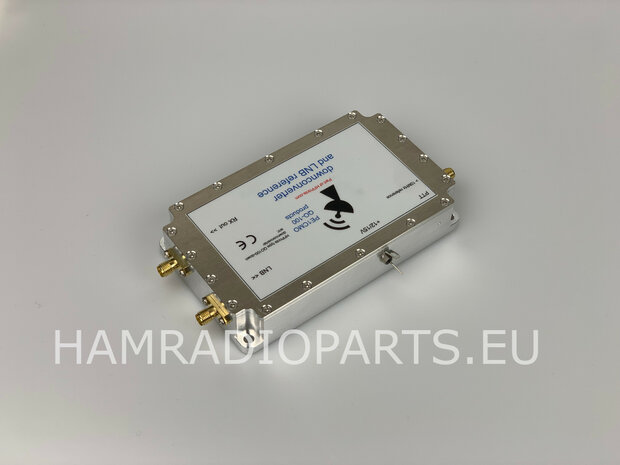

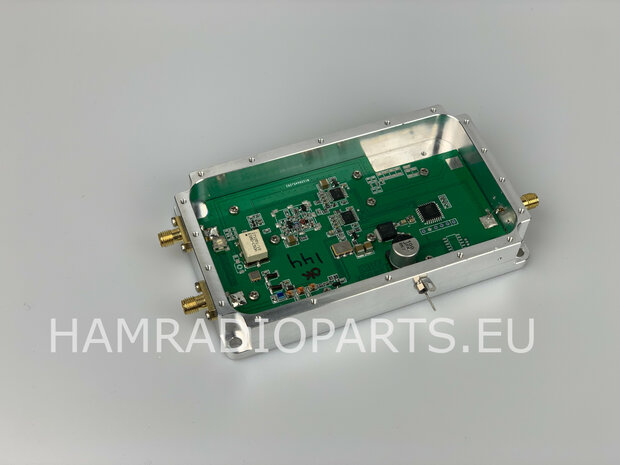

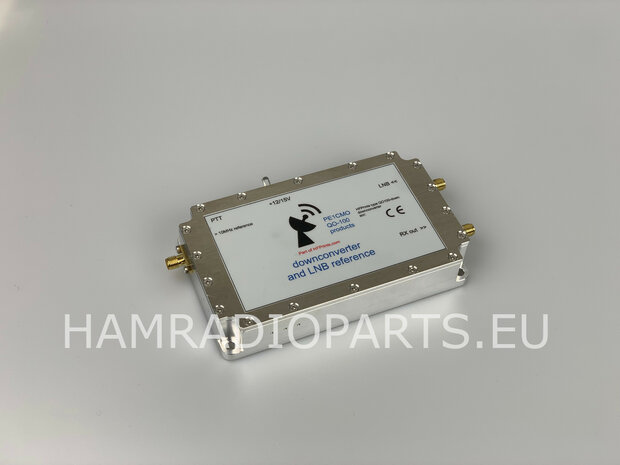

The QO100 down converter is build into a CNC machined aluminium enclosure with SMA connectors. DC power is 10 to 15V 200mA Converter and 25 MHz LNB reference are controlled by a 10 MHz GPSDO reference. This product is not waterproof, for external use, a waterproof housing is required.

Dimensions including connectors:  140mm (L) x 90mm (W) x 23mm (H)
