23CM RX Down converter
The PE1CMO 23cm converter is a multi-purpose converter for receiving the 23 cm band at your 144 MHz HAM receiver.  The local oscillator is a low noise VCO with a small range. The PLL...

Standaard levertijd

3-5 werkdagen

ā‚¬Ā 189,00
Prijs per stuk
Aantal:
Bestellen

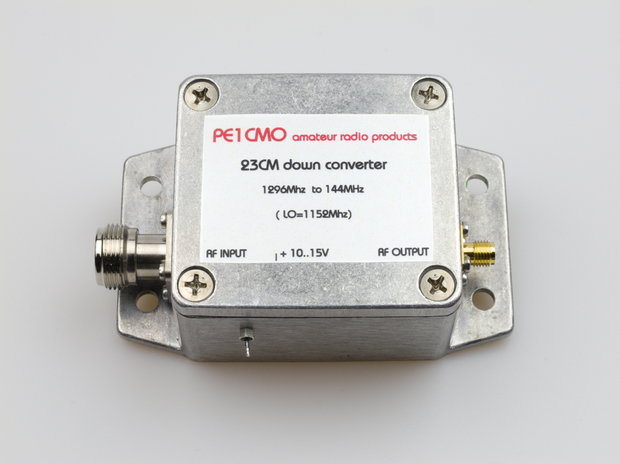

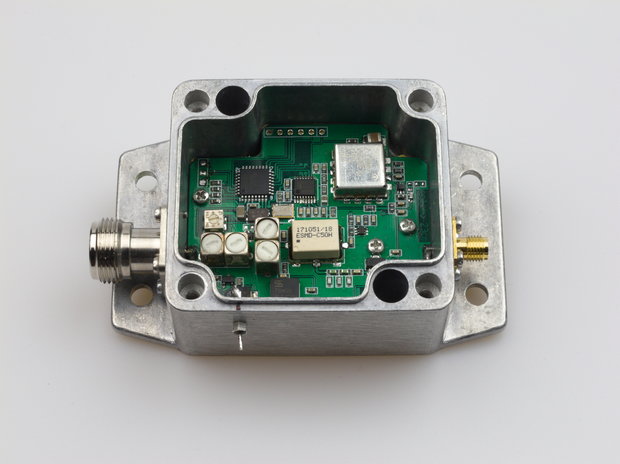

The PE1CMO 23cm converter is a multi-purpose converter for receiving the 23 cm band at your 144 MHz HAM receiver.

The local oscillator is a low noise VCO with a small range. The PLL reference is 2.5ppm with the extended temperature range, normal the stability is within 1ppm (1 kHz). The RF frontend uses Helical filter for a low loss but high performance bandpass filter. The frontend can be tuned from 1250 - 1300 MHz .

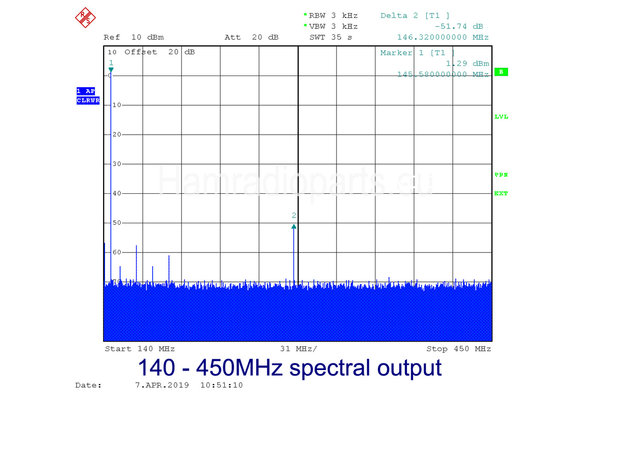

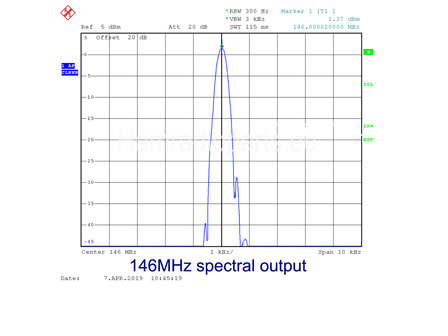

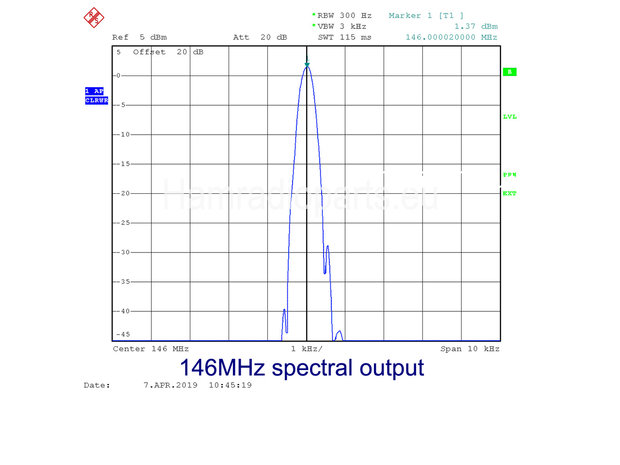

Dynamic range. The dynamic range is excellent. The mixer is a 17 dBm medium level mixer so that the total output IP3 is around +32 dBm.


Specifications:

Tuning range                                     1250 – 1300 MHz             bandwidth filters 25 MHz
Gain                                                     22dB
Ripple                                                  +/- 1dB
Noise                                                   3dB
Output IP3                                         32 dBm
Local oscillator                                  1152 MHz                           (144 MHz out) for 1296 MHz


Stability                                               1 ppm (normal)                2.5 ppm from -10 / +60C
Power                                                 8 – 12V                                250mA
LO drive                                              17.5 dBm                            (60mWatt)
Antenna LO output                        lower then -55dBm        (international rules says lower then -50dBm)

Input connector                              N connector                      SMA on request
Output connector                          SMA                                     N on request
Dimensions                                       102 x 60 x 36mm              included flanges.
Options for wideband:                 display for tuning the converter with fixed IF out  (steps 12.5 kHz)

Converter is built in a splash water proof and RF closed aluminum case with 2 flanges for easy mounting.
