QO 100 Upconverter 12W

This module is a complete high power up converter from 70cm to 2400MHz for the QO 100 uplink.

Productspecificatie

Standaard levertijd

: levertijd 2 weken na order

€ 350,00

Prijs per stuk

heatsink: *

Aantal:

Bestellen

Omschrijving

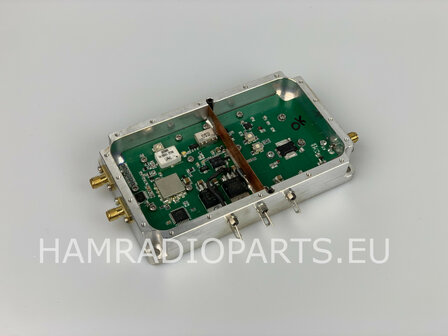

This module is a complete high power up converter from 70cm to 2400MHz for the QO 100 uplink. With a 70cm RF power from 100 to max 500 mWatts you can transmit with a maximum of 10-12 Watts at 2400 MHz to the QO 100 uplink. At the input of the upconverter there is a 500 mWatt attenuator with SMD resistors.
After this attenuator a Potentio trimmer is placed to adjusted the correct input power for maximum output.

This module requires a 10MHz GPSDO reference for stable operation. Without this reference, the output frequency will be to unstable !

The upconverter is build into a CNC machined aluminium enclosure with SMA connectors. It requires 2 powersupplies, an 12V (1A) for the upconverter section and an 28-30V (1.5A) powersupply for the internal 10W amplifier.

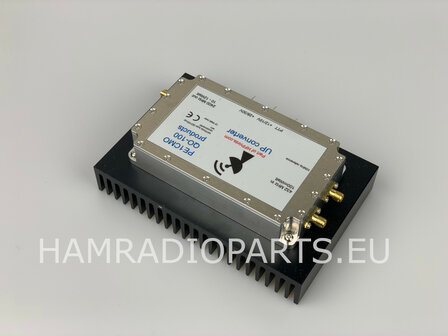

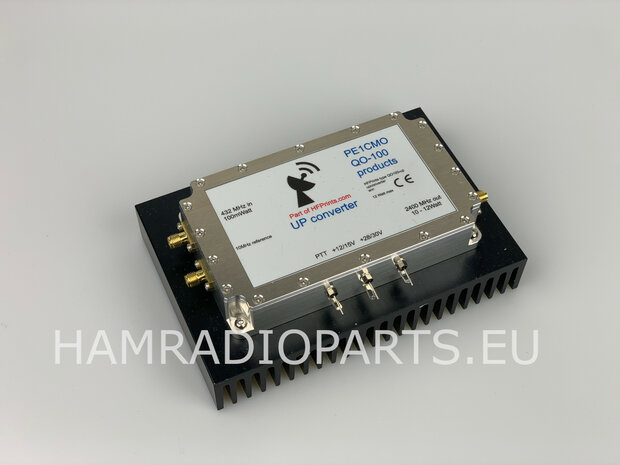

This upconverter requires a heatsink, minimum size: 150 (L) x 75mm (W) x 20mm (H).
The heatsink is not included, can be added to your order.

Dimensions including connectors: 140mm (L) x 90mm (W) x 23mm (H)
(height upconverter + heatsink= 50mm)
