70CM RX Down converter GPS

The PE1CMO 70cm converter is a multi-purpose converter for receiving the 70cm band at your 28MHz HAM receiver. This model is designed to lock on an external 10MHZ GPS source for optimum stability and

Standaard levertijd

: Op dit moment niet leverbaar, verwachte levering vanaf 01-2025

€ 169,00

Prijs per stuk

Uitgang Connector: *

Uitgangs frequentie 70CM naar: *

Aantal:

Bestellen

Omschrijving

The PE1CMO 70cm converter is a multi-purpose converter for receiving the 70 cm band at your 28 MHz HAM receiver.

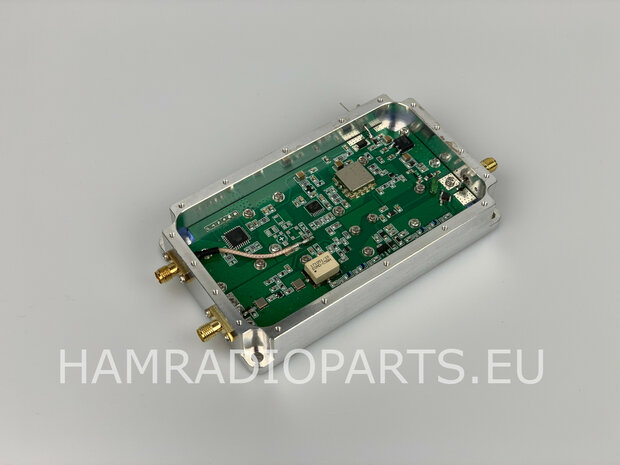

The local oscillator is a low noise VCO with a small range. The PLL reference is designed to be connected to an external 10MHz GPS controlled OCXO. The RF frontend uses SMD double SAW filters for good supression of unwanted signals. The dynamic range is excellent. The mixer is a 17 dBm medium level mixer so that the total output IP3 is around +32 dBm.

Specifications:

Tuning range                                     430 - 439 MHz
Gain                                                     29dB
Ripple                                                  +/- 1dB
Noise                                                   3dB
Output IP3                                         32 dBm
Local oscillator                                  404 MHz for 28 MHz

Stability                                             external GPS control
Power                                                 8 – 12V                                250mA
LO drive                                              17.5 dBm                            (60mWatt)
Antenna LO output typ -60dBm

Input connector                              N connector                      SMA on request
Output connector SMA                                     N on request
Dimensions                                       102 x 60 x 36mm              included flanges.

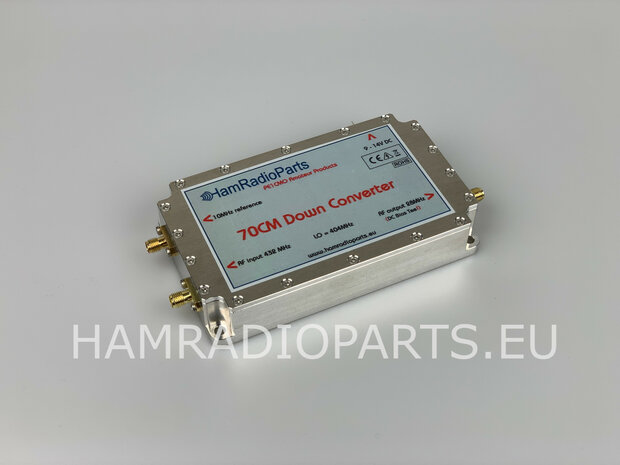

Converter is built in a splash water proof and RF closed aluminum case with 2 flanges for easy mounting.
