QO 100 Upconverter 12W Model 2024

This module is a complete high power up converter from 70cm to 2400MHz for the QO 100 uplink.

Standaard levertijd

: de laatste, levertijd 3 werkdagen

€ 350,00

€ 280,00

Prijs per stuk

Aantal:

Bestellen

Omschrijving

This QO100 upconverter module is a complete high power up converter from 70cm to 2400MHz for the QO 100 uplink. With a 70cm RF power from 150 to max 500 mWatts you can transmit with a maximum of 10-12 Watts at 2400 MHz to the QO 100 uplink. At the input of the upconverter there is a 500 mWatt attenuator with SMD resistors. After this attenuator a Potentio trimmer is placed to adjusted the correct input power for maximum output.

This module requires a 10MHz GPSDO reference for stable operation. Without this reference, the output frequency will be to unstable !

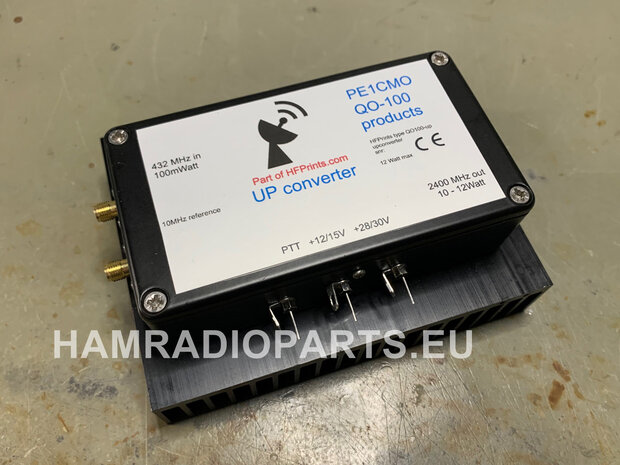

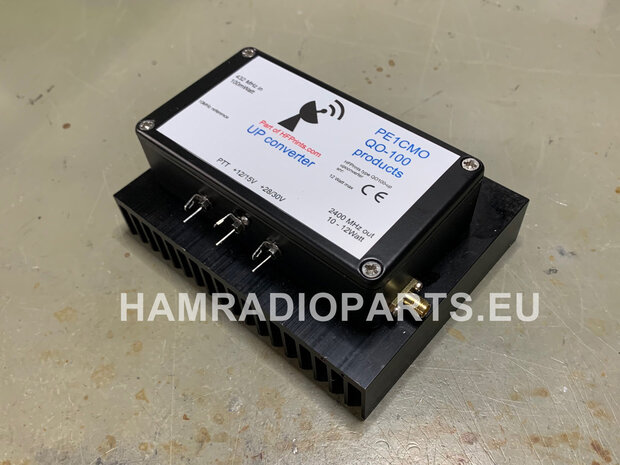

The upconverter is build into an aluminium enclosure with SMA connectors. It requires 2 powersupplies, an 12V (1A) for the upconverter section and an 28-30V (1.5A) powersupply for the internal 10W amplifier.

Heatsink is included.

Technically this 2024 QO100 upconverter has the same specifications at the 2025 model only the enclosure has changed.

Dimensions: 130mm (L) x 100mm (W) x 57mm (H)
