QO100 Down Converter 432MHz Output
This downconverter is a combined downconverter and a 25 MHz PLL reference for the LNB.

Standaard levertijd

3-4 werkdagen

€ 270,00
Prijs per stuk
Aantal:
Bestellen

This QO100  downconverter is a combined downconverter and a 25 MHz PLL reference for the LNB. The converter works as a 2nd down converter from 739 to 432 MHz. (The first converting is the pll controlled LNB from 10489.5 to 739.5 MHz).

This comply model has extra options, a 20W 15dB input attenuator and an TX/RX switch (PTT controlled) for simplex use.

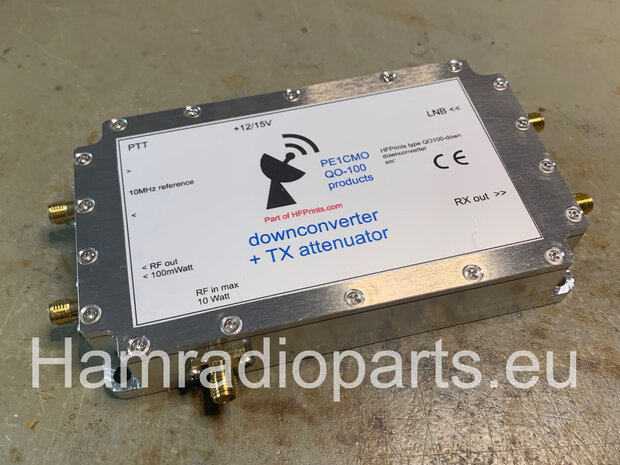

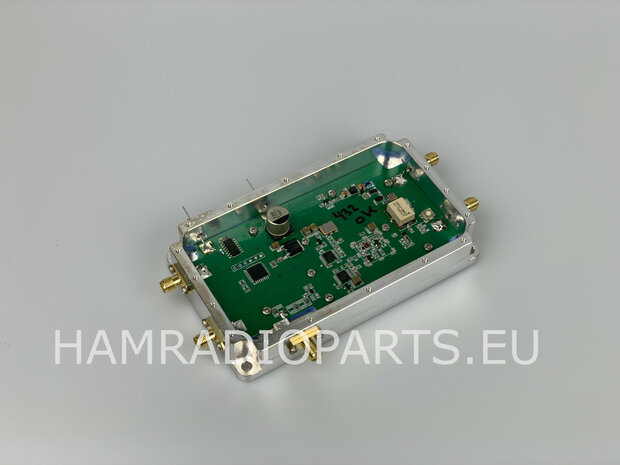

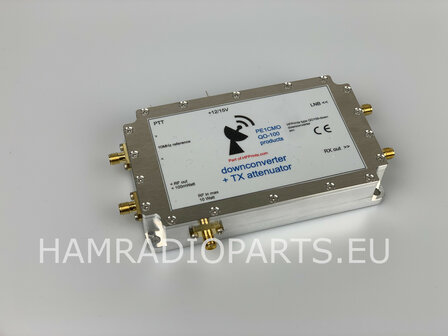

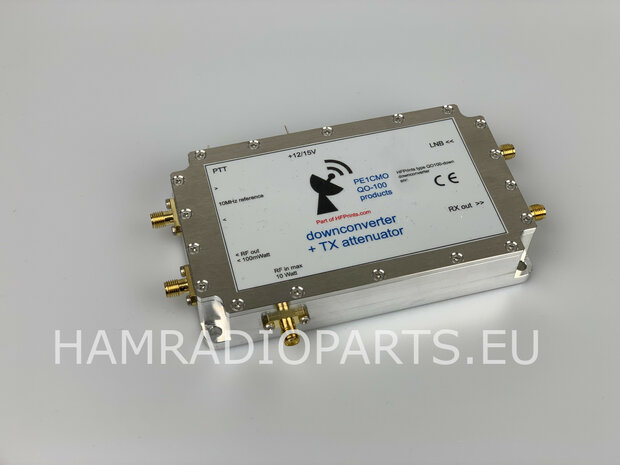

The QO100 down converter is built into a CNC machined aluminium enclosure with SMA connectors.
DC power is 10 to 15V 200mA Converter and 25 MHz LNB reference are controlled by a 10 MHz GPSDO reference.

This product is not waterproof, for outside use, a waterproof housing is required.
Dimensions including connectors:  140mm (L) x 90mm (W) x 23mm (H)
