QO100 Simplex set (down converter + upconverter + LNB)

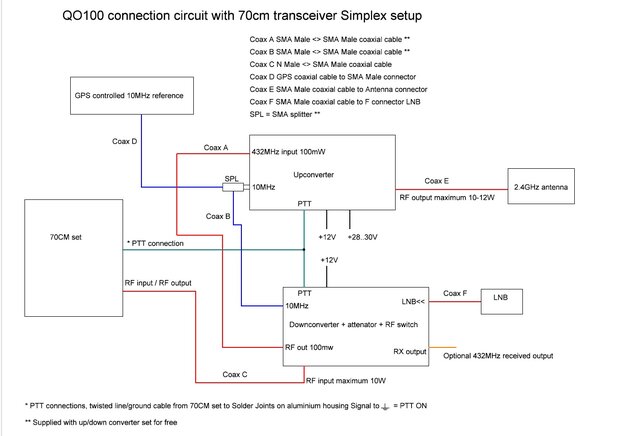

QO100 Simplex set for use with a single 70cm (432MHz) Ham set.

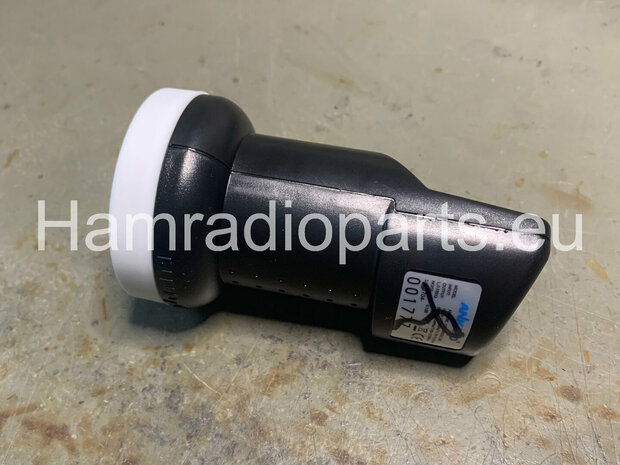

The set contains a 10GHz customised LNB, a downconverter and an 10W upconverter incl connector/coax set.
In a complete set, LNB is supplied for free.

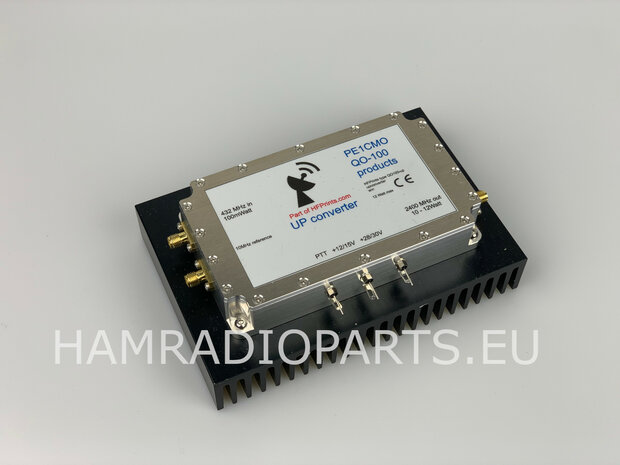

The upconverter:
This module is a complete high power up converter from 70cm to 2400MHz for the QO 100 uplink. With a 70cm RF power from 100 to max 500 mWatts you can transmit with a maximum of 10-12 Watts at 2400 MHz to the QO 100 uplink. At the input of the upconverter there is a 500 mWatt attenuator with SMD resistors.
After this attenuator a Potentio trimmer is placed to adjusted the correct input power for maximum output.

This module requires a 10MHz GPSDO reference for stable operation. Without this reference, the output frequency will be to unstable !

The upconverter is build into a CNC machined aluminium enclosure with SMA connectors. It requires 2 powersupplies, an 12V (1A) for the upconverter section and an 28-30V (1.5A) powersupply for the internal 10W amplifier.

This upconverter requires a heatsink, minimum size: 150 (L) x 75mm (W) x 20mm (H).
The heatsink is not included, can be added to your order.

Dimensions including connectors:  140mm (L) x 90mm (W) x 23mm (H)
(height upconverter + heatsink= 50mm)

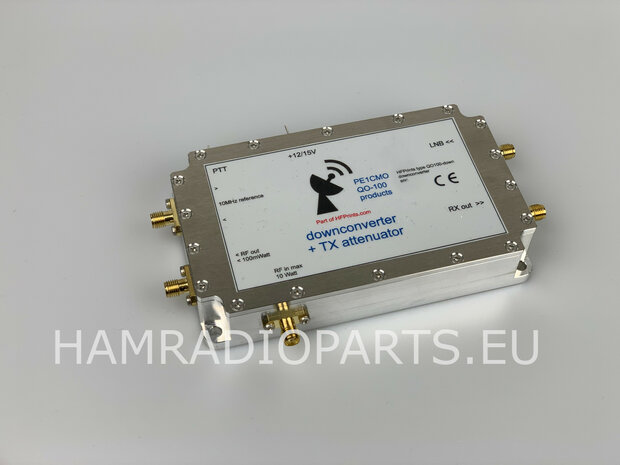

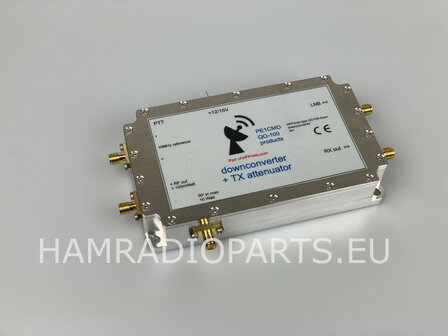

Comply Downconverter:

This QO100  downconverter is a combined downconverter and a 25 MHz PLL reference for the LNB. The converter works as a 2nd down converter from 739 to 432 MHz. (The first converting is the pll controlled LNB from 10489.5 to 739.5 MHz).

This comply model has extra options, a 20W 15dB input attenuator and an TX/RX switch (PTT controlled) for simplex use.

The QO100 down converter is built into a CNC machined aluminium enclosure with SMA connectors.
DC power is 10 to 15V 200mA Converter and 25 MHz LNB reference are controlled by a 10 MHz GPSDO reference.

This product is not waterproof, for outside use, a waterproof housing is required.
Dimensions including connectors:  140mm (L) x 90mm (W) x 23mm (H)
